Often referred to as an oxidation resistant grade alloy, these Inconel 600 Plate exhibit many other advantageous properties. Known by its trade name Inconel 600 is also sold under terms such as Nickel 600, Alloy 600, Nickelvac 600 as well as Ferrochronin 60. Apart from being one of the widest used plate across several industries, this nickel chromium based Alloy 600 Plate is usually available in sheet, coil & strips.
Many of our clients prefer using the ASTM B168 UNS N06600 Sheet at cryogenic temperature settings right up to an elevated temperature point of about 2000 °F. This is because, at elevated temperatures, the content of nickel present in the Inconel 600 Sheet is what aids the alloy in retaining its corrosion resistance properties. This corrosion resistance property has been noticed even in the presence of a reductive condition, where the Alloy 600 Sheet has the ability to resist corrosion by a number of organic as well as inorganic compounds. At cryogenic temperatures, unlike certain conventionally used stainless steel grade plates, the ASME SB 168 UNS N06600 Strips does not undergo a ductile to the brittle transition phase. Generally, the very versatile Inconel 600 strip is available in any size or choose from one of our stock sizes up to 3m long.
Specification | ASTM B168 / ASME SB 168 |
---|---|
Tolerances (width / thickness) |
|
International Standard |
|
Dimensions |
|
Thickness | 0.1 to 100 mm Thk |
Width | 10-2500mm |
Length | 2m, 2.44m, 3m, or as required |
Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard |
Form | Plate, Coils, Sheet, Strip, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |

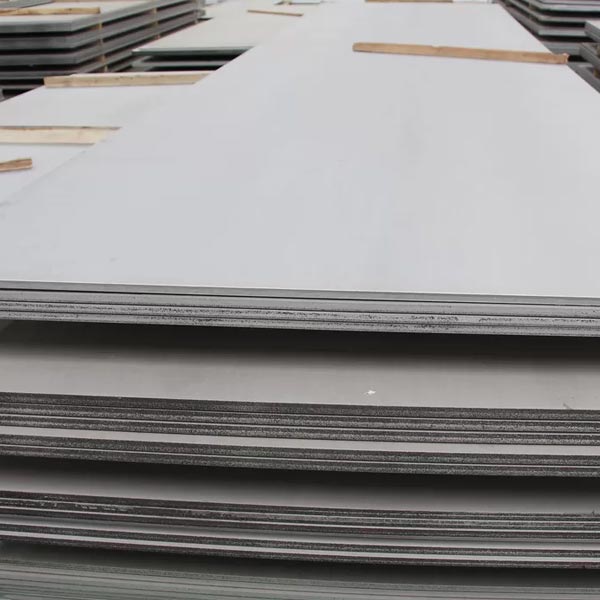

Cold rolled Inconel 600 thin plate |
0.2-4mm |
Hot rolled 600 Inconel medium plate |
4-20mm |
Hot rolled ASTM B 168 Inconel 600 thick plate |
20-60mm |
Hot rolled Inconel Werkstoff No 2.4816 extra thick plate |
60-115mm |
NICKEL GRADE | WERKSTOFF NR. (WNR) | EN (European) | UNS | JIS | BS | GOST | AFNOR |
Inconel 600 | DIN 2.4816 | NiCr15Fe | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M |
Inconel 600 Plate | ASME SB168 Alloy Flat Sheet |
Alloy 600 Sheet | ASME SB168 Inconel Quarto Plate |
Alloy 600 Foil Rolls | Inconel 600 Expanded Sheet |
ASTM B 168 Inconel 600 Shim Sheet | ASME SB 168 NCF 600 Precision Strip |
UNS N06600 Clad Plate | Inconel Werkstoff No 2.4816 Shims |
DIN 2.4816 Alloy 600 Flat Strip | Inconel 600 Thin Plate |
ASME SB168 N06600 Hot Rolled Sheet | Alloy 600 Tisco Plate |
ASTM B168 N06600 Cold Rolled Sheet | Inconel UNS N06600 Tread Plate |
SAE AMS 5540 Clad Sheet | ASME SB168 N06600 Shim Stock |
Inconel Alloy 600 Shim Sheets | ASME SB168 N06600 1/4 Inch Plate |
DIN 2.4816 Alloy 600 Plate Mill Finish | SAE AMS 5540 10mm Plate |
ASME SB168 Inconel Plasma Cutting Plate | ASME SB168 Alloy Laser Cut Plate |
Alloy | C | Mn | Si | S | Cu | Fe | Ni | Cr |
Grade 600 | 0.15 maximum | 1.00 maximum | 0.50 maximum | 0.015 maximum | 0.50 maximum | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
Grade | Density | Melting Range | Tensile Stress | Yield Stress (0.2%Offset) | Elongation |
Alloy 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
Type | Price in INR |
---|---|
HOT ROLLED ANNEALED, DESCALED , INCONEL ALLOY 600 PLATE (UNS N06600), 65MM THK X 900MM X 1 | INR 1,658/Kg |
SB 168 UNS NO6600 Grade 600 Plate 70MM THK, 2400MM X 2400MM | INR 1,514/Kg |
for more price please contact Aesteiron, we respond within 1 working day.
Inconel 600 Sheet standard thickness is 0.010” to 0.156” & Plate up to 4”
